One side of a 50-amp RV usually stops working because one of its two 120-volt hot legs has lost power. The failure may come from the campground pedestal, shore power cord, RV inlet, surge protector, transfer switch, main breaker, or breaker panel.
I’ll help you identify which leg is missing, narrow down the failure, and make the safest next move. You’ll also learn which checks are reasonable to handle yourself and when you should disconnect power immediately.
Key Takeaways
- A 50-amp RV receives power through two separate 120-volt hot legs.
- Losing one leg can disable several unrelated outlets and appliances.
- The problem may begin outside or inside your RV.
- A working microwave or air conditioner does not confirm both legs work.
- Campground breakers and receptacles commonly cause one-leg failures.
- A burned plug, loose terminal, or open neutral needs immediate attention.
- Never open energized panels unless you are trained for electrical work.
What Does “One Side” of a 50-Amp RV Mean?
When RV owners say one side is dead, they usually mean one electrical leg has stopped supplying power. It does not necessarily mean the physical left or right side of the RV has lost electricity.
How a 50-Amp RV Electrical Service Works
A standard 50-amp RV connection has four conductors:
- Hot leg L1
- Hot leg L2
- Neutral
- Ground
Each hot leg provides approximately 120 volts when measured against neutral. Each leg can also carry up to 50 amps.
Together, both legs can provide around 12,000 watts of usable power. That is considerably more than the 3,600 watts available from a 30-amp RV connection.
The two hot legs also measure approximately 240 volts between them. However, most RV appliances use only 120 volts from one hot leg and the neutral.
Some larger coaches may contain specialized 240-volt equipment. However, that setup is less common in typical travel trailers and fifth wheels.
How RV Circuits Are Divided Between L1 and L2
Inside your RV breaker panel, the branch circuits are divided between two bus sections. One section receives power from L1, while the other receives power from L2.
Manufacturers try to balance large electrical loads between the two legs. For example, one air conditioner may be connected to L1, while another is connected to L2.
Other appliances may be divided like this:
- Front air conditioner on L1
- Rear air conditioner on L2
- Microwave on L1
- Converter on L2
- Water heater on L1
- Selected receptacles on either leg
The exact arrangement depends on your RV’s wiring design.
Why Some Appliances Still Work
Appliances connected to the healthy leg continue operating normally. Anything connected to the failed leg remains dead.
This creates a confusing situation. Your microwave may work while several outlets and one air conditioner remain off.
You may also see lights working throughout the RV. Most interior lights use the 12-volt system, so they may continue operating from the batteries.
That does not confirm your full 120-volt shore power system is working.
Does a 50-Amp RV Use 240-Volt Power?
A 50-amp RV receives split-phase electrical service. This provides 120 volts from either hot leg to neutral and approximately 240 volts between the two hot legs.
Most RV appliances use 120 volts. They connect to one hot leg rather than using both legs together.
Therefore, losing one hot leg does not normally shut down the entire RV. It only affects the circuits assigned to that missing leg.
Common Signs That One 50-Amp Leg Is Dead
A missing electrical leg usually creates a noticeable pattern. Several unrelated appliances stop working while others continue operating normally.
- One air conditioner works while the other remains off.
- Some outlets work while several others remain completely dead.
- The microwave works, but the converter does not charge.
- The water heater works on propane but not electricity.
- Half of the breaker panel appears to have no power.
- An energy management system shows no voltage on L1 or L2.
- Everything works on the generator but not on shore power.
- Shore power returns when the cord or plug moves.
- One side of the pedestal breaker feels hot.
- A plug blade looks dark, pitted, or discolored.
A single dead appliance does not always mean a missing leg. However, several dead circuits across different areas strongly suggest one leg has failed.

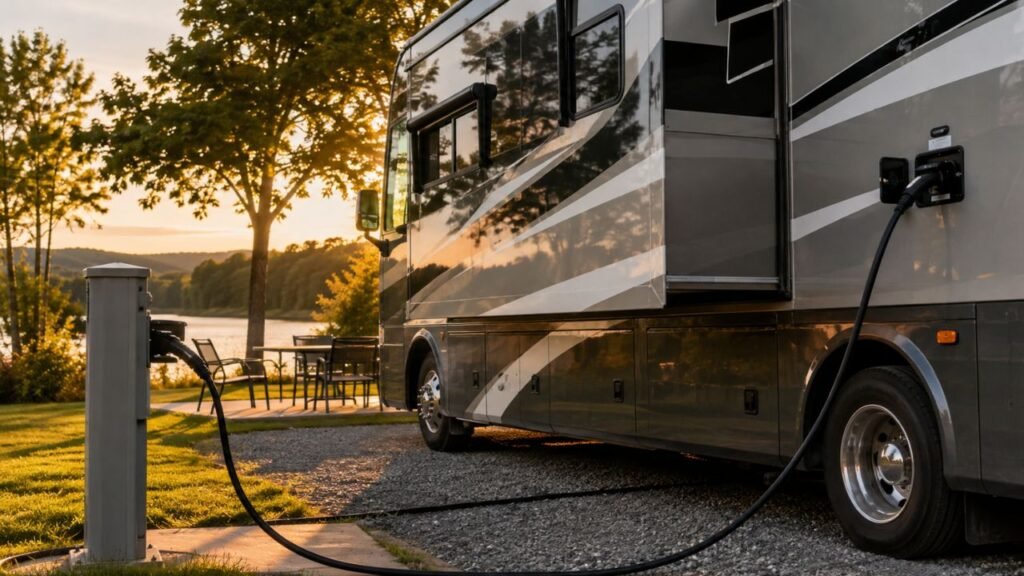

What Causes One Side of a 50-Amp RV to Stop Working?
A lost leg can occur anywhere between the campground electrical supply and your RV breaker panel. Starting at the pedestal and working inward usually finds the problem faster.
A Tripped Campground Pedestal Breaker
The campground pedestal contains a double-pole breaker for the 50-amp receptacle. This breaker controls both hot legs supplying your RV.
Sometimes one pole trips while the breaker handle still looks almost normal. A quick visual check may not reveal the problem.
Turn off high-draw appliances inside the RV first. Then move the pedestal breaker fully to the OFF position before turning it back ON.
Do not repeatedly reset a breaker that trips again. A repeated trip may indicate a short circuit, damaged wiring, or serious overload.
A Failed or Worn Pedestal Breaker
Campground breakers experience heavy use, weather exposure, and repeated heating cycles. Over time, one internal pole can weaken or fail.
The breaker may appear switched on while one leg provides no usable voltage. It may also work intermittently as the internal parts heat up.
This problem is especially likely when your RV works normally at another campsite.
Ask campground staff to inspect or replace the pedestal breaker. Avoid opening or repairing campground equipment yourself.
A Damaged 50-Amp Pedestal Receptacle
A worn receptacle may grip one plug blade poorly. Weak contact creates electrical resistance and heat.
That heat can damage the receptacle, plug blade, or both. Eventually, one hot leg may lose contact completely.
Look for these warning signs:
- Loose plug fit
- Darkened receptacle slots
- Melted plastic
- Burned odors
- Crackling sounds
- Excessive heat around the connection
Disconnect immediately if the plug or pedestal feels unusually hot. Do not continue using a connection that shows heat damage.
A Miswired Campground Pedestal
A pedestal may have incorrect voltage, missing ground, reversed wiring, or an open neutral. These faults can happen after poor repairs or damaged underground wiring.
A quality RV electrical management system should detect many pedestal faults. It may refuse to connect power when the supply is unsafe.
Never bypass the protection system simply because it will not energize your RV. The device may be preventing expensive appliance damage or electric shock.
A Burned or Damaged Shore Power Plug
A 50-amp shore power plug carries substantial current. Loose contact around one blade can quickly create heat.
The affected blade may become black, rough, pitted, or partially melted. The plastic surrounding it may also become soft or discolored.
A damaged plug can interrupt only L1 or L2. The other leg may continue powering part of the RV.
Replace the plug before reconnecting power. Also inspect the pedestal receptacle because it may have caused the original damage.
A Broken Conductor Inside the Shore Power Cord
The shore power cord contains separate conductors for L1, L2, neutral, and ground. One conductor can break while the others remain intact.
Internal damage may result from:
- Repeated bending near the plug
- Closing storage doors on the cord
- Driving over the cable
- Pulling the cord by its plug
- Water entering a damaged cord end
- Long-term heat damage
- Corrosion inside a connector
A broken conductor often causes intermittent power. Electricity may return when the cord is bent or repositioned.
Do not keep moving the cord to restore power. Internal arcing can create severe heat and fire risk.
A Loose Detachable Cord Connection
Many RVs use a detachable shore power cord with a locking inlet. The connector must be inserted fully and secured tightly.
A loose threaded ring or locking collar allows the plug to shift. That movement can weaken contact around one hot terminal.
The connection may become hot before one leg finally stops working. Inspect both the cord connector and the RV inlet for discoloration or melting.
Always support heavy cords so their weight does not pull against the inlet.
A Faulty Surge Protector or Electrical Management System
A surge protector or electrical management system sits between the pedestal and RV. It monitors the incoming electrical supply.
The system may disconnect one leg because it detects:
- Low voltage
- High voltage
- Open neutral
- Missing ground
- Reverse polarity
- Incorrect frequency
- A missing hot leg
This may look like a failure, but the system could be protecting your RV.
Portable and hardwired protectors can also fail internally. A damaged relay or terminal may stop one leg from passing through.
Check the display or error code before replacing anything. The message may clearly identify L1, L2, voltage, or neutral trouble.
A Failed Automatic Transfer Switch
An automatic transfer switch selects between shore power and generator power. It normally contains separate contacts for both hot legs.
One relay contact can burn, stick, or loosen independently. That allows one leg through while blocking the other.
Common transfer switch symptoms include:
- Full power on the generator but partial power on shore
- Full shore power but partial generator power
- Buzzing or chattering sounds
- Delayed or inconsistent power transfer
- Burning smells near the switch
- Heat around the switch enclosure
The transfer switch contains high-current wiring. Internal diagnosis should be handled by a qualified RV technician or electrician.
A Tripped or Failed 50-Amp Main Breaker
Your RV normally has a double-pole 50-amp main breaker. This breaker feeds both sides of the electrical panel.
One pole may trip or fail internally. The linked handles can make the breaker appear completely on even when one side is not supplying power.
Turn off major appliances first. Move the main breaker fully OFF, then firmly back ON.
Replace the breaker only after confirming the breaker itself is faulty. Loose wiring or heat-damaged panel parts may create similar symptoms.
A Loose Wire Inside the Breaker Panel
Road vibration can loosen high-current wiring connections over time. A loose main lug may stop one hot leg from reaching the panel bus.
Loose connections also create resistance and heat. The area may show discoloration, melted insulation, or signs of arcing.
Other warning signs include:
- Crackling sounds
- A hot electrical panel
- Burning smells
- Intermittent power
- Flickering appliances
- Visible soot near a breaker
Do not tighten energized panel connections. Disconnect every power source, including generators and inverters, before any inspection.
Even with power disconnected, panel work should be left to a professional unless you have proper electrical training.
A Damaged Breaker Panel Bus Bar
The breaker panel bus bars distribute incoming power to the branch breakers. Heat, corrosion, or loose breaker contact can damage one section.
A damaged bus connection may leave several breakers dead. Replacing individual branch breakers will not solve the problem.
Bus damage often requires replacing the panel or major internal components. Continuing to use a burned bus can create arcing and fire risk.
A Generator Breaker or Generator Output Problem
When the issue happens only on generator power, check the generator’s onboard breaker. Many RV generators have a two-pole output breaker.
One side may trip or fail while the generator continues running. The engine sound alone does not confirm both electrical legs are available.
Turn the generator off before inspecting its breaker area. Reset the generator breaker according to the manufacturer’s instructions.
If one leg remains missing, the generator output wiring or transfer switch may need professional testing.
An Adapter or Extension Cord Failure
Adapters add more electrical connection points. Each added connection creates another possible location for heat, corrosion, or broken conductors.
A damaged 50-to-30-amp adapter, dogbone adapter, or extension cord may interrupt one hot leg.
Remember that a normal 30-amp campsite connection supplies only one 120-volt hot leg. A 30-to-50-amp adapter cannot provide the RV’s full two-leg capacity.
Some adapters energize both sides of the panel from the same 120-volt leg. However, your total available power remains limited to the 30-amp supply.
Causes and Likely Locations
The pattern of the failure can quickly narrow down the problem. Use this table before replacing cords, breakers, or other expensive components.
| What You Notice | Most Likely Cause | First Safe Check |
| One leg is dead at only one campsite | Pedestal breaker or receptacle | Try another verified pedestal |
| Pedestal tests correctly, but the RV does not | Cord, plug, adapter, or inlet | Inspect disconnected components |
| Generator works, but shore power does not | Pedestal, cord, EMS, or shore transfer contacts | Check the EMS display |
| Shore power works, but generator power does not | Generator breaker or transfer switch | Reset the generator breaker |
| One leg disappears after the transfer switch | Burned relay or loose transfer switch terminal | Arrange professional testing |
| One panel bus remains dead | Main breaker, loose lug, or damaged bus | Disconnect power and call a technician |
| Only several outlets are dead | GFCI or branch breaker | Reset GFCIs and branch breakers |
| Lights and water pump are also weak | Battery, converter, or 12-volt wiring | Check battery voltage |
| Power changes when the cord moves | Broken conductor or loose connection | Stop using the cord |
| Plug or pedestal smells burned | Overheated electrical connection | Disconnect immediately |
How to Confirm That One Electrical Leg Is Missing
Begin with simple checks that do not require opening electrical equipment. The goal is to confirm a pattern and locate the failure boundary safely.
Check Which Appliances and Outlets Still Work
Make a quick list of working and nonworking appliances. Include air conditioners, outlets, the microwave, converter, refrigerator, and water heater.
Several dead devices in unrelated locations may share the same electrical leg. This is more meaningful than finding one dead outlet.
You can also check the labels on your breaker panel. Breakers positioned on alternating bus locations may help reveal which leg is missing.
Do not rely entirely on breaker position, though. Panel layouts and wiring arrangements vary between RV models.
Check the RV Energy Management Display
Many larger RVs have an energy management or load-monitoring display. It may show separate readings for L1 and L2.
A normal display might show approximately:
- L1: 120 volts
- L2: 120 volts
A missing leg may show zero volts, an error message, or no amperage reading.
Some systems also shed appliances automatically. Confirm whether the system is intentionally disabling loads before assuming the leg is dead.
Reset the Pedestal Breaker Correctly
Turn off the RV air conditioners, electric water heater, microwave, and other major loads.
Move the campground pedestal breaker completely to OFF. Wait briefly, then switch it firmly back to ON.
A breaker must sometimes travel fully into the OFF position before it resets. Simply pushing an apparently active handle toward ON may do nothing.
If the breaker trips again, leave it off. Contact campground management rather than repeatedly resetting it.
Reset the RV Main Breaker
Inside the RV, turn the 50-amp main breaker fully OFF. Then return it firmly to ON.
Also check the individual branch breakers. A tripped branch breaker may rest between the ON and OFF positions.
Reset each suspected breaker by turning it completely off before turning it back on.
Test the RV at Another Known-Good Power Source
A different verified 50-amp pedestal can quickly separate a campground problem from an RV problem.
If both legs return at another site, your RV is probably not the source. The original pedestal likely has a breaker, receptacle, or wiring issue.
If the same leg remains dead, continue checking the shore cord, inlet, EMS, transfer switch, and panel.
Compare Shore Power and Generator Operation
This is one of the most useful diagnostic comparisons.
When both legs work on the generator but not shore power, suspect:
- Campground pedestal
- Shore power plug
- Shore power cord
- RV inlet
- Surge protector
- Shore-side transfer switch contacts
When both legs work on shore power but not the generator, suspect:
- Generator breaker
- Generator output wiring
- Generator-side transfer switch contacts
And, when the same side remains dead on both power sources, the problem is likely after the transfer switch. The main breaker, panel wiring, or bus bar becomes more suspicious.
Inspect the Plug, Cord, Adapter, and Inlet
Disconnect shore power before touching or inspecting these components.
Look carefully for:
- Blackened plug blades
- Green or white corrosion
- Melted plastic
- Loose terminals
- Cracked insulation
- Softened connector bodies
- Burned smells
- Water inside connectors
- Loose locking rings
Do not reconnect a visibly damaged component. Heat damage usually worsens with continued use.
Use a 50-Amp Electrical Tester or EMS
A dedicated 50-amp RV tester can confirm whether the pedestal supplies both legs. A quality EMS can also identify voltage and wiring faults.
Using purpose-built equipment is safer than inserting loose meter probes into a live receptacle.
A qualified person using a multimeter should normally find:
- L1 to neutral: approximately 120 volts
- L2 to neutral: approximately 120 volts
- L1 to L2: approximately 240 volts
- Neutral to ground: close to zero volts
Do not attempt live voltage testing unless you understand the risks. A 50-amp pedestal can deliver enough current to cause fatal injury.
Step-by-Step Troubleshooting Order
Work from the campground power source toward the RV panel. This prevents unnecessary parts replacement and keeps the diagnosis organized.
- Turn off air conditioners and other high-draw appliances.
- Check the EMS or surge protector for error messages.
- Reset the campground pedestal breaker completely.
- Reset the RV’s 50-amp main breaker completely.
- Reset any affected branch circuit breakers.
- Inspect the shore plug, cord, adapters, and RV inlet.
- Check for heat, discoloration, melting, or burned odors.
- Try another known-good 50-amp pedestal when possible.
- Compare operation on shore power and generator power.
- Reset the generator’s onboard breakers when applicable.
- Check whether the failure affects one branch circuit or many.
- Stop if testing points toward the transfer switch or panel.
- Arrange professional testing for internal high-current components.
This order helps you identify where good power stops. Once you find that boundary, the likely failed component becomes much easier to identify.
How to Tell Whether the Problem Is Outside or Inside the RV
You do not need to guess which component failed. Look for clues showing whether the power loss begins before or after electricity enters your RV.
Signs the Campground Pedestal Is the Problem
The campground supply is likely responsible when:
- The RV works normally at another campsite.
- Your EMS reports a pedestal wiring error.
- One pedestal breaker pole will not reset.
- The receptacle feels loose around the plug.
- The plug becomes hot only at one campsite.
- Campground staff confirm a missing leg.
- Nearby campers report similar electrical issues.
Do not use adapters to bypass a damaged campground receptacle. Ask for another site or proper pedestal repair.
Signs the Shore Cord or RV Inlet Is the Problem
The cord or inlet becomes more likely when power changes as the cable moves.
You may also notice:
- Heat near one connector
- A loose detachable cord
- Darkened plug blades
- Melted inlet plastic
- Corrosion inside the connection
- Intermittent power during rain
- A burned smell near the inlet
Replace damaged connectors using correctly rated 50-amp components. Every conductor must be installed in the correct terminal and tightened properly.
Signs the Transfer Switch Is the Problem
A transfer switch problem often causes different results between shore and generator power.
For example, generator power may work fully while shore power loses one leg. The opposite pattern can also occur.
Other clues include clicking, buzzing, delayed transfer, overheating, or a burned electrical odor.
Stop using the affected power source if the switch becomes hot or noisy.
Signs the Main Breaker or Panel Is the Problem
The main breaker or panel becomes more likely when the same leg stays dead on every power source.
Other signs include:
- Several breakers on one bus remain dead.
- The main breaker will not reset.
- The panel feels unusually warm.
- You hear crackling or buzzing.
- The power cuts in and out during travel.
- Visible insulation appears melted.
- One main lug shows heat damage.
These conditions require immediate professional attention. Do not continue loading the working leg while panel damage remains possible.
Is It Really a Lost 50-Amp Leg?
Several smaller electrical problems can look like a dead leg. Confirm the pattern before replacing major power components.
A Tripped GFCI Outlet
One GFCI outlet can protect several downstream receptacles. A tripped bathroom GFCI may disable outlets in the kitchen, exterior bay, or basement.
Search for GFCI outlets throughout the RV. Press RESET firmly after confirming the outlet has power available.
If it will not reset, unplug connected appliances. A ground fault or failed GFCI may still be present.
A GFCI normally affects only its protected circuit. It does not shut down an entire 50-amp electrical leg.
A Tripped Branch Circuit Breaker
A branch breaker supplies one appliance or group of outlets. When it trips, everything on that branch circuit stops working.
Turn the breaker fully OFF before resetting it. If it trips again, unplug the connected loads.
A repeated branch breaker trip may indicate an overload, damaged appliance, or wiring fault.
A Failed Appliance
One failed air conditioner does not prove one leg is missing. The appliance may have a thermostat, capacitor, control board, or motor problem.
Check whether other circuits assigned to the same leg still work. A missing leg usually affects several devices rather than one appliance.
A 12-Volt Electrical Problem
Interior lights, water pumps, slide-outs, vent fans, and many control boards use 12-volt DC power.
Weak batteries, a blown fuse, failed converter, or loose ground may affect these systems even when both 120-volt legs work normally.
Check battery and converter operation when the problem mainly affects 12-volt equipment.
An Energy Management Load-Shedding System
Some RVs automatically disable selected appliances when electrical demand becomes too high.
The system may temporarily shut down an air conditioner, water heater, or other large load. This protects the main connection from overload.
Check the energy management display before assuming a power leg has disappeared.
A 30-Amp Adapter Limiting Available Power
A 30-amp connection does not provide the same service as a true 50-amp pedestal.
Your RV may receive only 3,600 watts instead of approximately 12,000 watts. An energy management system may disable appliances to stay below that limit.
Some 30-to-50-amp adapters energize both panel legs from one 120-volt source. However, you still cannot use normal 50-amp capacity.
Can Low Voltage Make One Side Appear Dead?
Low voltage can sometimes make one side seem dead, especially when an electrical management system disconnects an unsafe leg.
Campground voltage may drop during hot weather when many RVs run air conditioners. Long wiring runs, worn receptacles, and overloaded campground circuits can make the problem worse.
A loose connection may also create voltage drop on only one hot leg. The leg may appear normal without a load but collapse when an appliance starts.
Air conditioners and compressors are especially vulnerable to low voltage. Their motors draw more current while struggling to operate.
That extra current creates heat in wiring, plugs, and motor windings. Repeated low-voltage operation can shorten appliance life.
A quality EMS usually disconnects power before the voltage becomes dangerously low. Do not bypass it to keep appliances running.
Can an Open Neutral Cause One Side to Stop Working?
An open or loose neutral is more dangerous than a simple missing hot leg.
The neutral normally carries the difference between loads on L1 and L2. When the neutral connection becomes loose or disconnected, voltage can shift unpredictably between the legs.
One group of circuits may receive very low voltage. The other group may receive excessive voltage.
This can damage televisions, microwaves, converters, refrigerators, chargers, and control boards within seconds.
Disconnect immediately when you notice:
- Lights becoming unusually bright
- Lights becoming extremely dim
- Rapid voltage changes
- Appliances behaving unpredictably
- An EMS open-neutral warning
- Electronics shutting down unexpectedly
- Burning smells or buzzing
Do not continue troubleshooting while connected to a suspected open neutral. Ask campground staff or a qualified electrician to inspect the power source.
What to Do When One Side Loses Power at a Campground
Protecting your RV matters more than keeping every appliance running. Reduce electrical demand and determine whether the pedestal is safe.
- Turn off both air conditioners.
- Switch the electric water heater off.
- Stop using space heaters and cooking appliances.
- Check the EMS display for error codes.
- Reset the pedestal breaker only once.
- Inspect the plug and pedestal for heat.
- Disconnect if you smell burning plastic.
- Ask campground staff to test the pedestal.
- Request another verified 50-amp campsite.
- Do not repeatedly reconnect unsafe power.
- Use a generator only where campground rules permit.
Avoid blaming your RV until the campground supply has been checked. A worn pedestal can create the exact same symptoms as an internal RV failure.
Can You Temporarily Use the Working Side?
You may have limited power from the remaining leg. However, temporary use is only reasonable after ruling out neutral, grounding, heat, and arcing problems.
The working appliances depend on how your circuits are divided. You may have outlets and a microwave but no converter or second air conditioner.
Do not overload the working leg to compensate. Running several large appliances can trip the remaining breaker or overheat a weak connection.
Never try to restore the dead circuits by:
- Bridging the two panel buses
- Moving wires between breakers
- Bypassing the surge protector
- Creating a homemade adapter
- Jumpering the transfer switch
- Installing a larger breaker
These actions can create fire, shock, and appliance damage. A missing leg should be repaired rather than bypassed.
When Should You Stop Troubleshooting?
Electrical heat and arcing can turn a manageable problem into a fire. Disconnect power when you notice any serious warning sign.
- Melted plugs or receptacles
- Darkened or pitted plug blades
- Smoke or visible sparks
- Buzzing or crackling sounds
- Burning plastic smells
- A hot shore power connection
- A hot transfer switch
- A hot breaker panel
- Repeated loss of one leg
- Rapidly changing voltage
- An open-neutral warning
- A missing ground warning
- Tingling from steps or exterior metal
- A breaker that trips immediately
- Water inside an electrical connector
Shut off the pedestal breaker before unplugging whenever possible. This reduces the chance of arcing at the plug.
When to Call an RV Electrician
Call a qualified RV electrician when the fault appears to involve the transfer switch, main breaker, breaker panel, generator output wiring, bus bars, or neutral connection.
Professional help is also necessary when you find burned insulation, melted components, loose high-current terminals, or repeated overheating.
Give the technician clear details about the problem. Mention whether it happens on shore power, generator power, or both.
Also share:
- Which appliances still work
- Which circuits remain dead
- Any EMS error codes
- Whether the plug became hot
- Whether another pedestal changed the symptoms
- Whether moving the cord affected power
These details help the technician locate the failure more quickly.
How Much Does It Cost to Repair a Dead 50-Amp Leg?
Repair costs depend on the failed component, accessibility, labor rates, and heat damage. This table compares the likely cost level rather than promising exact prices.
| Possible Repair | Relative Cost | Typical Work Involved |
| Campground pedestal repair | Campground responsibility | Replace breaker or receptacle |
| Adapter replacement | Low | Replace damaged adapter |
| Shore plug replacement | Low to moderate | Remove burned plug and install a rated replacement |
| New shore power cord | Moderate | Replace the complete 50-amp cord |
| RV inlet replacement | Low to moderate | Replace inlet and repair terminals |
| Surge protector replacement | Moderate | Replace portable protection device |
| Hardwired EMS replacement | Moderate to high | Replace internal relays or complete unit |
| Main breaker replacement | Moderate | Test and replace the double-pole breaker |
| Transfer switch replacement | Moderate to high | Replace contacts, terminals, or complete switch |
| Breaker panel replacement | High | Replace damaged bus and panel components |
| Open-neutral damage repair | Potentially high | Repair wiring and test damaged appliances |
A burned connector may damage the component connected to it. For example, a damaged cord plug may also ruin the campground receptacle.
Replacing both damaged sides prevents the new component from overheating again.
How to Prevent One-Leg Power Failures
Most preventable failures involve loose connections, heat, moisture, or poor campground power. Regular inspection can catch these problems before a leg disappears.
Use a Quality 50-Amp EMS
A full electrical management system provides more protection than a basic surge strip.
It can detect:
- Missing hot legs
- Open neutral
- Missing ground
- Reverse polarity
- Low voltage
- High voltage
- Incorrect frequency
Hardwired and portable models both work when installed and used correctly. Choose one rated for a 50-amp RV.
Keep Plug Connections Fully Seated
Insert the shore plug completely before turning on the pedestal breaker. Secure threaded rings and locking collars firmly.
A partially inserted plug reduces contact area. That creates resistance and heat under heavy loads.
Support the cord so its weight does not pull against the pedestal or RV inlet.
Inspect the Cord and Plug Regularly
Check the shore power equipment before every major trip and during long campground stays.
Look for:
- Pitted blades
- Loose blades
- Cracked insulation
- Darkened plastic
- Corrosion
- Water intrusion
- Soft connector bodies
- Damaged strain relief
A small amount of heat damage can spread quickly. Replace damaged parts before using the cord again.
Avoid Undersized Extension Cords
A 50-amp RV requires properly rated equipment. Household extension cords are not designed for this load.
Extra cord length also increases voltage drop. More connectors create additional points that can loosen or overheat.
Use the shortest correctly rated RV extension cord necessary.
Reduce Loads During Low-Voltage Conditions
Turn off nonessential high-draw appliances when campground voltage begins dropping.
Large electrical loads include:
- Air conditioners
- Electric water heaters
- Space heaters
- Clothes dryers
- Induction cooktops
- Microwaves
- Electric fireplaces
Reducing demand may prevent further voltage drop. However, disconnect if voltage remains outside safe limits.
Check Electrical Connections During Routine Service
High-current connections can loosen because of vibration and repeated heating cycles.
Ask a qualified technician to inspect:
- Transfer switch terminals
- Main breaker connections
- Breaker panel lugs
- Generator output wiring
- Shore power inlet terminals
- Hardwired EMS connections
These checks are especially helpful after finding heat damage elsewhere in the system.
Quick Diagnostic Summary
Use this table to decide which area deserves attention first.
| Test Result | Problem Area to Suspect |
| One leg is missing at the pedestal | Campground electrical supply |
| Pedestal is good, but cord output loses one leg | Cord, plug, or adapter |
| Cord is good, but power stops at the RV inlet | Inlet or inlet wiring |
| Generator works fully, but shore power does not | Shore cord, EMS, or transfer switch |
| Shore power works fully, but generator does not | Generator breaker, wiring, or transfer switch |
| Both sources lose the same electrical leg | Transfer switch output, main breaker, or panel |
| Both legs are present, but several outlets are dead | GFCI or branch circuit |
| AC appliances work, but lights and pump fail | Battery, converter, fuse, or 12-volt wiring |
| Power changes when the cord moves | Broken conductor or loose connector |
| Voltage swings between very high and low | Loose or open neutral |
Final Verdict
One side of a 50-amp RV normally stops working because one of the two 120-volt hot legs becomes interrupted. The failure may begin at the pedestal, shore cord, inlet, EMS, transfer switch, main breaker, or panel.
Start with the safest and easiest checks. Reset the pedestal and main breakers correctly, inspect the disconnected cord components, review EMS errors, and compare shore power with generator power.
Do not keep using the connection when you find heat, melting, unstable voltage, burning smells, or neutral errors. Those warnings point to conditions that can damage appliances or start an electrical fire.
Once you identify where good power stops, you can avoid replacing unrelated components. More importantly, you can choose a safe repair instead of guessing around a high-current electrical system.
Related FAQs
Can Half of a 50-Amp RV Lose Power?
Yes, half of a 50-amp RV can lose power when either L1 or L2 stops supplying electricity. Circuits connected to the healthy leg may continue operating normally.
Can One Side of a 50-Amp Breaker Trip?
One pole of a double-pole 50-amp breaker can trip or fail internally. The connected handles may still make the breaker appear fully switched on.
Why Does One RV Air Conditioner Work but Not the Other?
The two air conditioners may use separate electrical legs or branch circuits. A missing leg, tripped breaker, load-shedding system, or failed air conditioner can cause this problem.
Will a 50-Amp RV Work With Only One Hot Leg?
Some appliances may work from the remaining hot leg, but the RV will have greatly reduced electrical capability. You should locate and repair the missing leg before normal use.
Can a Bad Shore Power Cord Cause Half the RV to Lose Power?
Yes, a broken, burned, or corroded L1 or L2 conductor can interrupt one hot leg. The other conductors may continue supplying part of the RV.
Can a Surge Protector Cause One Leg to Be Dead?
An EMS may intentionally block an unsafe leg because of low voltage, high voltage, or wiring faults. A failed internal relay can also prevent one leg from passing through.
Can a Transfer Switch Lose Only One Leg?
Yes, one transfer switch relay, terminal, or contact can burn or loosen independently. This may leave one electrical leg working while the other remains dead.
Can a GFCI Make Half the RV Stop Working?
A tripped GFCI can disable several downstream outlets, but it normally does not remove power from an entire 50-amp leg.
Why Does Everything Work on Generator Power but Not Shore Power?
This pattern usually points toward the campground pedestal, shore power cord, RV inlet, EMS, or shore-side contacts inside the transfer switch.
Why Does Shore Power Work but the Generator Only Powers Half the RV?
Check the generator’s onboard breaker first. A generator output issue or damaged generator-side transfer switch contact may also block one leg.
Can Low Campground Voltage Cause One Leg to Shut Down?
Yes, an EMS may disconnect a leg when voltage drops below its safe operating range. Loose pedestal connections can also cause one leg’s voltage to collapse under load.
Is a Missing 50-Amp Leg Dangerous?
A simple missing hot leg causes partial power, but the underlying cause may involve overheating, arcing, grounding faults, or an open neutral. Those conditions can create serious fire and shock risks.
Should Both Legs of a 50-Amp RV Read 120 Volts?
Each hot leg should measure approximately 120 volts to neutral. The two hot legs should measure approximately 240 volts between each other on a properly wired pedestal.
Can Rain Cause One 50-Amp Leg to Stop Working?
Rain can enter a damaged pedestal, connector, cord end, or RV inlet. Moisture may cause corrosion, leakage current, tripping, or failure of one hot connection.
Can I Replace a 50-Amp RV Breaker Myself?
Breaker replacement involves dangerous high-current wiring and should only be attempted by someone with proper electrical training. A technician should also check for loose terminals and bus damage.
David Marshall shares travel route insights, mileage planning tips, and road-tested advice. His writing helps travelers understand distance, timing, and equipment choices. Every article is built around clarity and real-world usefulness.
